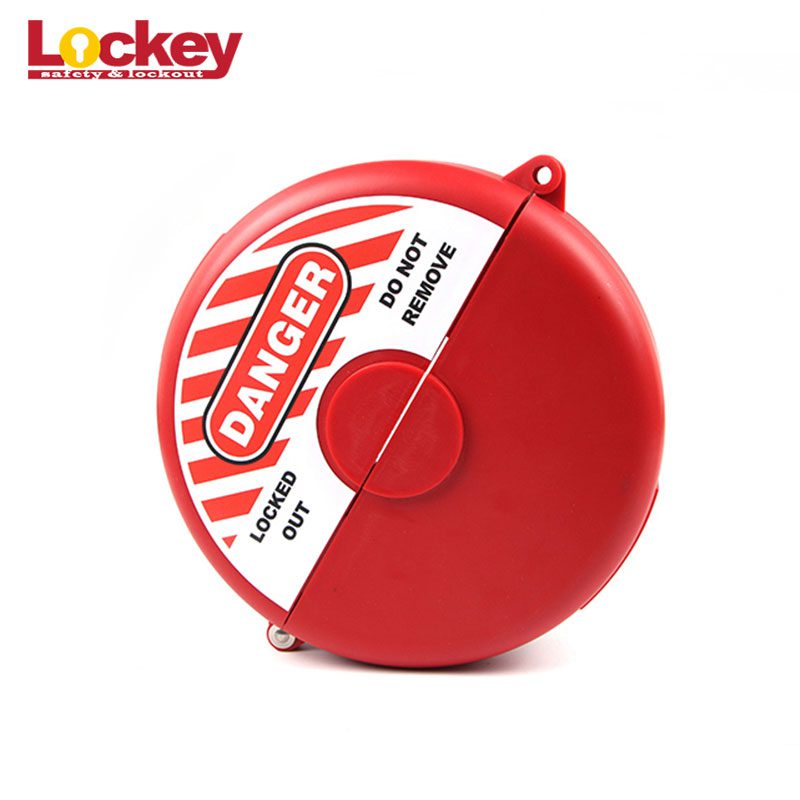

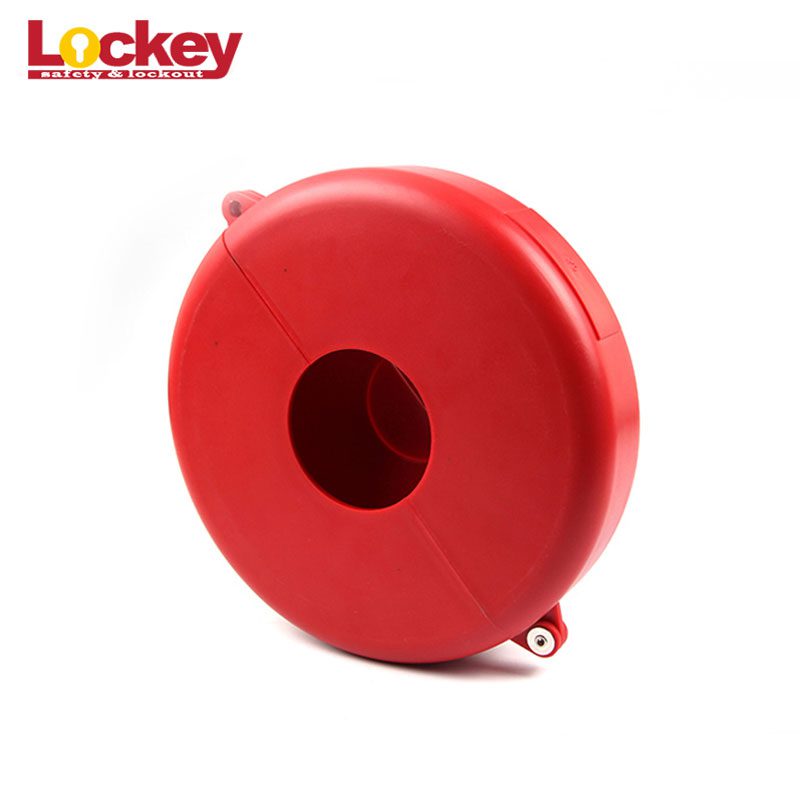

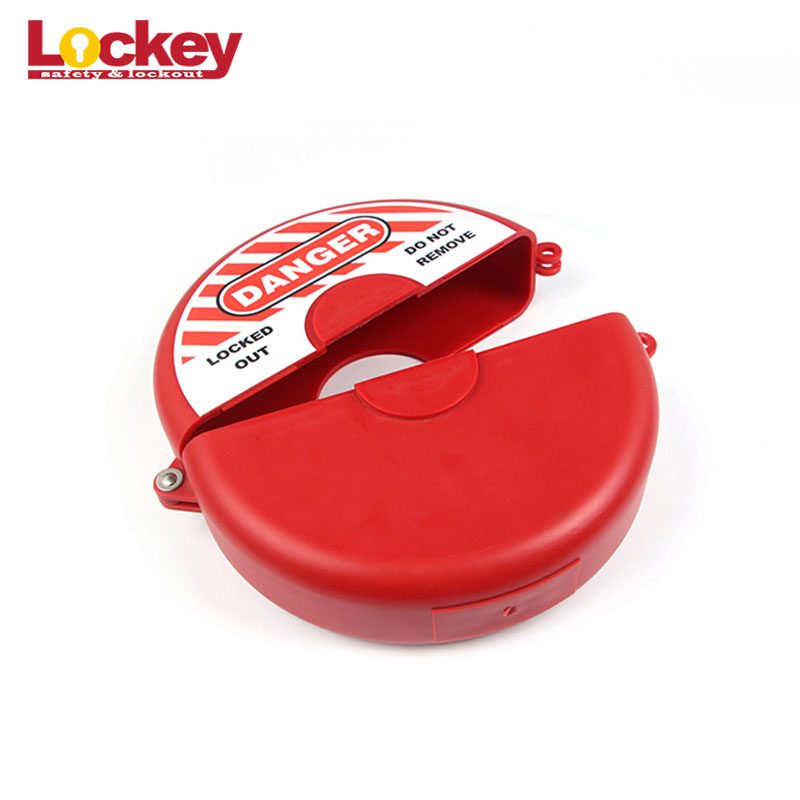

Standard Gate Valve Lockout SGVL01-05

Made from durable ABS, withstand temperature from -20℃ to +90℃. Once locked, it covers around the hand wheel and prevent the valve wheel from being turned. Accept up to 1 padlock, locking shackle max diameter 9.5mm. Available in 5 sizes and red color, other colors can be customized, providing English tag. Transparent one can be customized with PC. Part no.: SGVL01-TR ~ SGVL05-TR.

PRODUCT FEATURES

OVERVIEW

• Made from durable ABS, withstand temperature from -20℃ to +90℃.

• Once locked, it covers around the hand wheel and prevent the valve wheel from being turned.

• Accept up to 1 padlock, locking shackle max diameter 9.5mm.

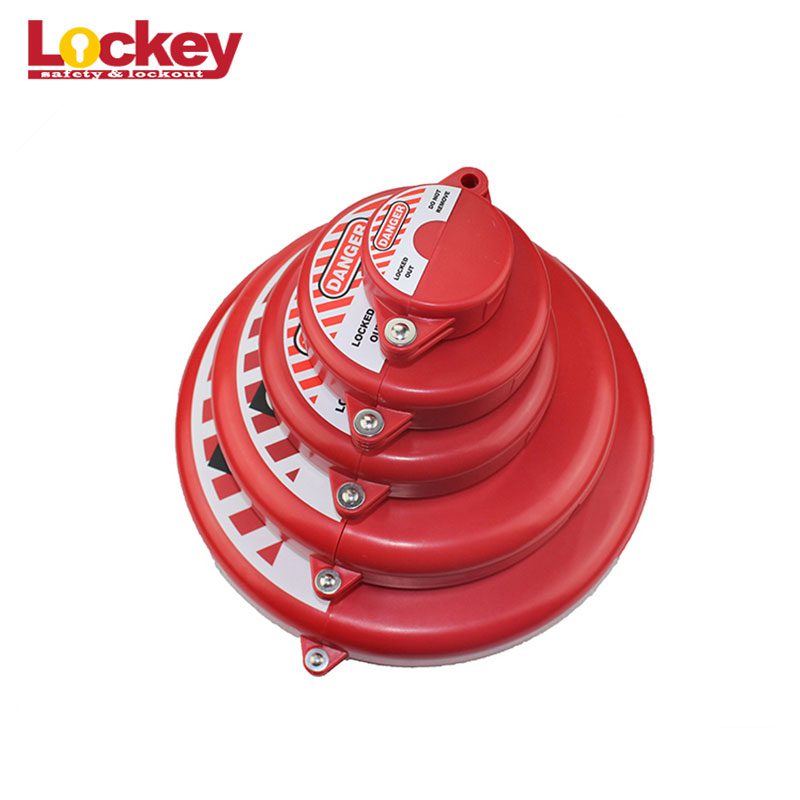

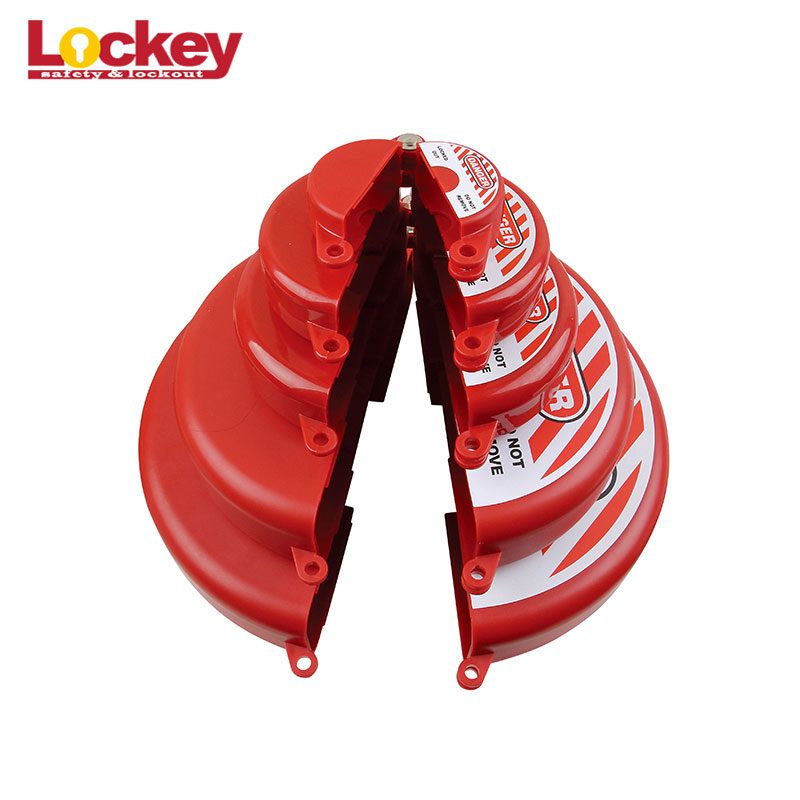

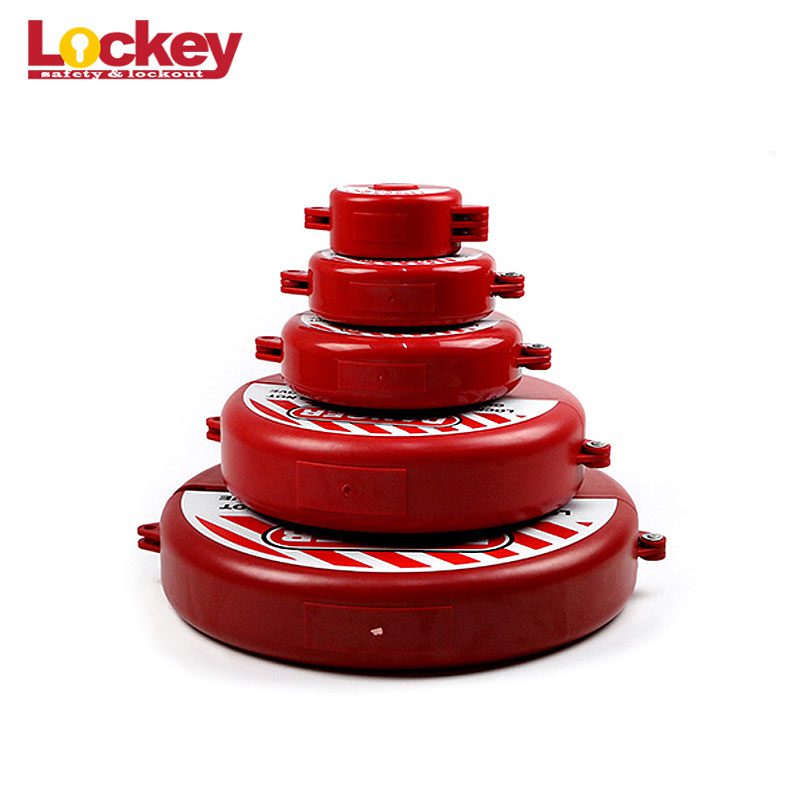

• Available in 5 sizes and red color, other colors can be customized, providing English tag.

• Transparent one can be customized with PC.

• Part no.: SGVL01-TR ~ SGVL05-TR.

Brand Name:	Prolockey
Description:	Standard Gate Valve Lockout
Body Material:	ABS750
Rivet Material:	Stainless steel
Service Temperature Range °F:	-20℃-90℃
Color:	Red
Lock Holes:	9.8mm

Product Number	Outer diameter(mm)	Central diameter(mm)	Hole Diameter(mm)	Inner Height(mm)	Product Net Weight:(kg)
SGVL01	80	/	20	30	0.067
SGVL02	142	33	45	37	0.230
SGVL03	184	53.3	63	44	0.359
SGVL04	280	71.7	89	67	0.785
SGVL05	364	74.4	105	67	1.227

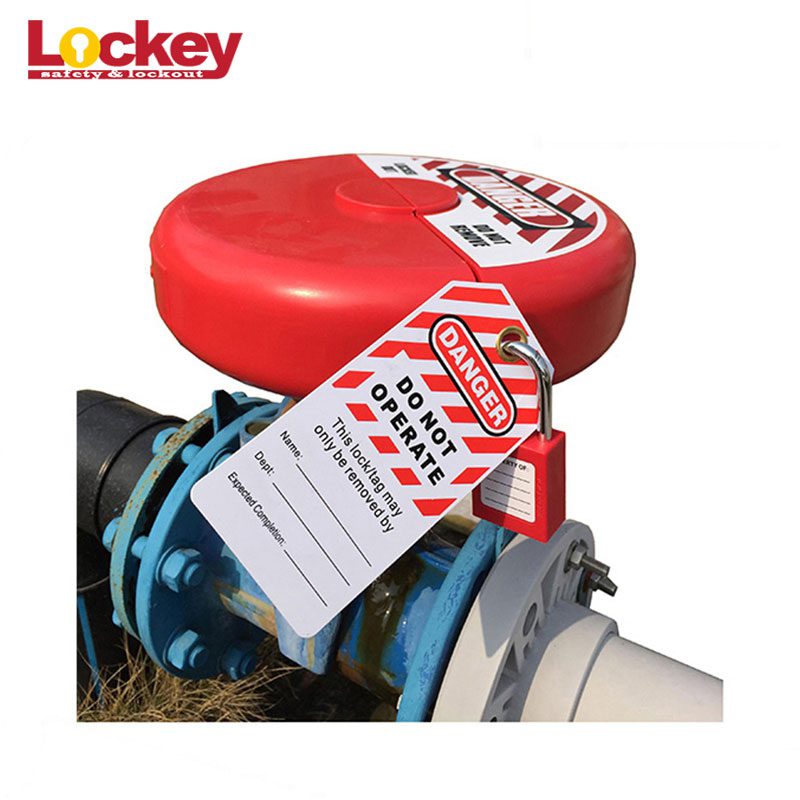

Applications

SGVL01-05APPLICATIONS

Made from durable ABS, withstand temperature from -20°C to +90COnce locked, it covers around the hand wheel and prevent the valve wheel from beingturned.
Accept up to 1padlock, locking shackle max diameter 9.5mm.Available in 5 sizes and red color, other colors can be customized, providing Englishtag.
Transparent one can be customized with PC
Part no.: SGVL01-TR ~SGVLO5-TR.
